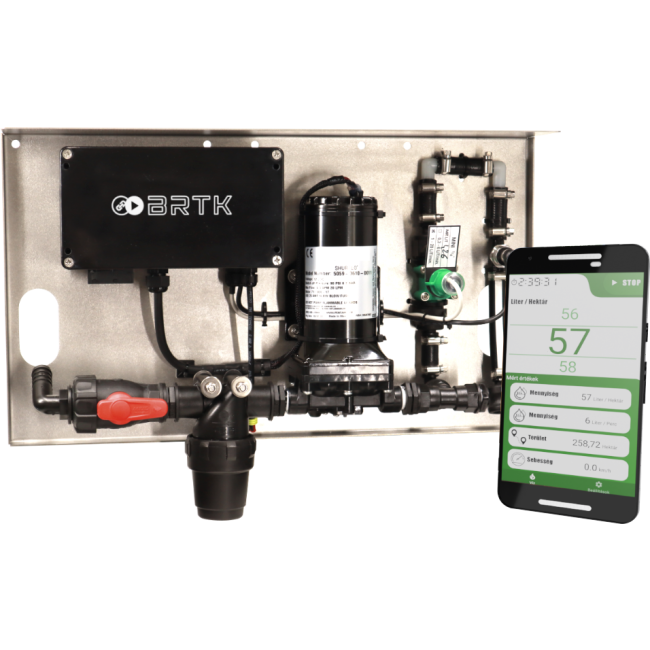

LIQUID APPLICATOR CONTROLLER KIT (smartphone/tablet)
$2,000.00
Package contains:
- Controller unit (IP68)
- Stainless steel mounting plate
- Pressure sensor
- Flow sensor
- 12 V pump (20l/min)
- Liquid filter
- Implement switch
- Connector for implement switch (with Superseal plug)
- IBBC 8.5 m ISOBUS cable (for power and data connection)
The user interface of the system is a common Android smarthpone/tablet. (The display is not part of the pacakge.)
Available for delivery in 3-4 weeks.
SKU
LAC01
HOW IT WORKS
The FLUXX controller is connected to a flow sensor and to a 12V pump.
The application rate depends on the tractor speed and is regulated by a PWM controlled speed of the pump. Measurement of the tractor's speed is based on GPS datas. Regulation is highly responsive and precise.
TECHNICAL PARAMETERS
- Measuring range of the flow sensor: 1 - 20 liter/min
- Pump capacity: 1 - 20 liter/min
- Pressure measurement: 0 - 10 bar
MAIN FUNCTIONS
- Application rate control
- Variable rate control
- Implement switch for machine position detection (application is switched off when implement is lifted)
- Automatic section control (with Guidance and ISOBUS version)
- Measured values: real applied amount, real flow, pressure
TYPICAL APPLICATION RATES

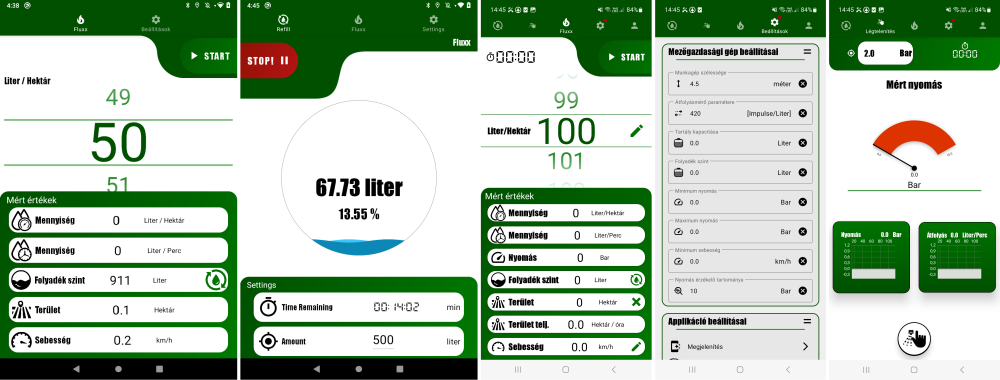

ANDROID SOFTWARE USER INTERFACE
