ISOBUS APPLICATOR TANK SYSTEM 660 liter

$5,800.00

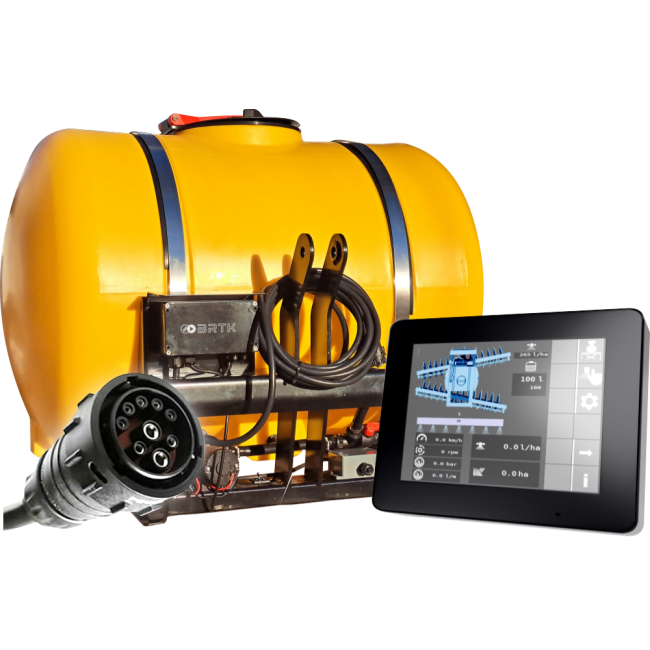

Package contains:

660 liter (174 gal)
Chassis
Controller unit (IP68) 
Stainless steel mounting plate 
Pressure sensor
Flow sensor
12 V pump (20l/min)
Liquid filter 
Implement switch
Connector for implement switch (with Superseal plug)
IBBC 8.5 m ISOBUS cable (for power and data connection)

The user interface of the system is a common Android smarthpone/tablet. (The display is not part of the pacakge.)

Available for delivery in 3-4 weeks.

SKU

ISOBUS APPLICATOR TANK SYSTEM 660 liter

Details

HOW IT WORKS

The FLUXX controller is connected to a flow sensor and to a 12V pump.
The application rate depends on the tractor speed and is regulated by a PWM controlled speed of the pump. Measurement of the tractor's speed is based on GPS datas. Regulation is highly responsive and precise.

TECHNICAL PARAMETERS

- Measuring range of the flow sensor: 1 - 20 liter/min

- Pump capacity: 1 - 20 liter/min

- Pressure measurement: 0 - 10 bar

- Tank capacity: 660 liter (174 gal)

MAIN FUNCTIONS

- Application rate control
- Variable rate control
- Implement switch for machine position detection (application is switched off when implement is lifted)
- Automatic section control (with Guidance and ISOBUS version)
- Measured values: real applied amount, real flow, pressure
