PS-A ISOBUS SPRAYER CONTROLLER

$1,800.00

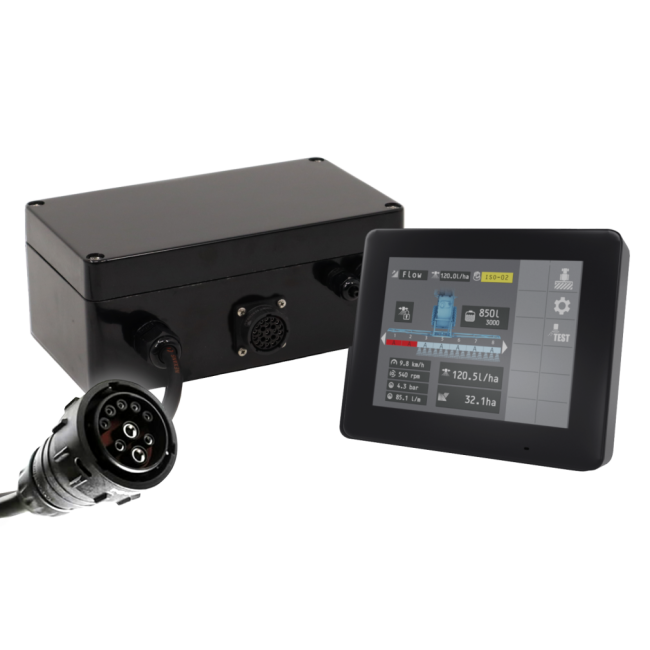

Package contains:

Controller unit (IP68) 
IBBC 3m ISOBUS cable (for power and data connection)

The display is not part of the package.

Available for delivery in 3-4 weeks.

SKU

PS-A

Details

HOW IT WORKS

The module (PS-A) is a fully ISOBUS-compatible spray control module that handles automatic section control, application-rate control, and variable application rate control.

The module has the same connector socket as the ARAG Bravo 180s displays. All you have to do is disconnect the old monitor and connect it to the PS-A module, then connect the PS-A to the tractor's ISOBUS connection.

This is a unique solution on the market that allows you to convert your old/used sprayer into a modern, ISOBUS-compatible machine.

TECHNICAL PARAMETERS

- Round connector to connect with ARAG Bravo 180s cable harness

- 3m ISOBUS cable with IBBC connector

MAIN FUNCTIONS

- Auto-section

- Variable rate control

- Application rate control

- Measured values: real applied amount, real flow, pressure, covered area, RPM of TLT

SUPPORTED FUNCTIONS

- Manual or automatic section on/off

- Regulation volumetric (pressure) valve based on flow measurement

- Flow and pressure measurement

(Specific, unique sprayer functions and hydraulic movements are not supported.)

COMPATIBLE CABLE HARNESS

- Cable harness of ARAG Bravo 180s
